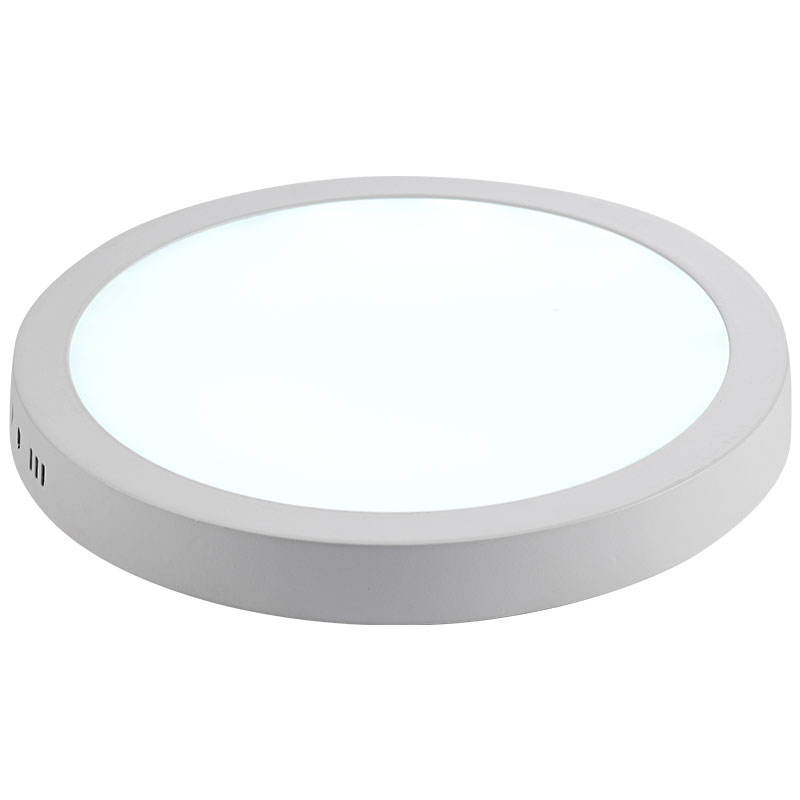

Surface LED panel light
- TECHNICAL PARAMETER:
- Input Voltage:AC85-265V
Power: 6W, 12W, 18W, 24W
Power Factor: 0.50
Beam Angle: 270 Degree
Housing: Die cast aluminium
Led Light Source: Sanan 2835
Driver:Constant Current, Non-isolated
CCT.:3000-7000K
CRI: Ra70
Lumens Efficiency: 70 LM/W
Warranty: two years - Application:
- INQUIRY
Application
Application places: family, office, school, hospital,shop, hotel, exhibition hall, art hall, museum and other important places.
Product packing details
| Item | Size | pcs/ctn | CTN Size | G.W./ CTN |
| 6W | Φ115X28mm | 100 | 63*35*25.5CM | 9 kgs |
| 12W | Φ160X28mm | 60 | 37*35.5*35.5CM | 12 kgs |
| 18W | Φ220X28mm | 40 | 69*39*24CM | 12.8 kgs |
| 24W | Φ290X28mm | 20 | 61.5*40*31.5CM | 21.6 kgs |
